Shooting Multi Reticle Long Eye Relief Thermal Night Sight Orion335 Only 450g

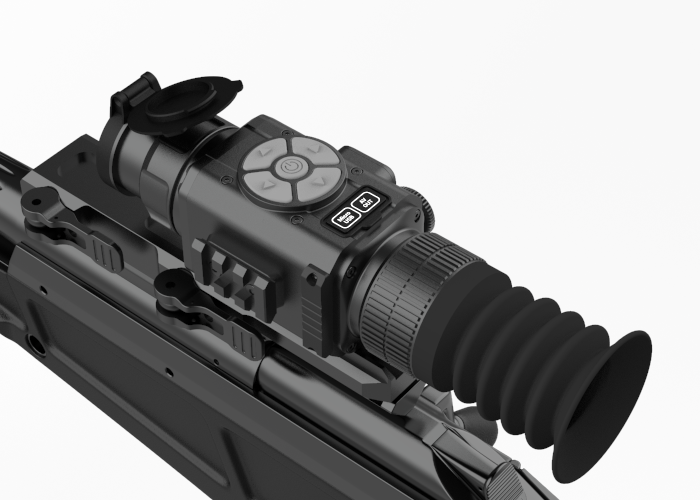

Thermal Imaging Sight Orion335
The Orion series is designed with compact size, user-friendly controls, and ergonomic design to ensure the highest level of comfort and usability. The highlight of the ORION is the ability to link via Wi-Fi the device with mobile units using the free mobile application Cam802. The software connects the device with a mobile unit (smartphone or tablet) which enables you to receive footage in the real-time mode, to distantly operate the device with your smartphone, as well to save the image/video captured by the device.
OUR FEATURES:
High Optic Magnification
Orion offers the highest magnification in the class of compact thermal imagers. Considerable optic magnification can be increased by means of digital zoom to provide the best identification of observed objects.
Picture in Picture Function
Upon activation Picture in Picture function displays the second small image with magnification in the top part of the screen. The small image helps to zoom in on a target while retaining the rest of the field of view visible.
IP67 Waterproof Rated
IP67 waterproof-rated for protection from heavy rainfall, snow or other precipitation. The Orion is designed to run flawlessly, even after submersion in up to 3 feet of water for up to 30 minutes.
| Technical Data Sheet of Orion rifle series |
| | Orion335 | Orion350 |
| Detector | |
| Type | Uncooled |
| Resolution | 384×288 |
| Frame Rate | 50Hz |
| Pitch | 17μm |
| Spectral range | 8-14μm |
| NETD | less then 50mk |
| Optical Characteristics | |
| Objective lens | 35mm | 50mm |
| Magnification | 1.4x | 2.0x |
| FOV | 10.6°×8.0° | 7.4°×5.6° |
| Close-up range | 5m |
| Eye Relief | 60mm |
| Dioptre Adjustment | -5D-4D |
| Functions | |
| Zoom | 2x/4x/PIP |
| Palette | 10 optional(can be customized) |
| Startup time | less than 5 seconds |
| Startup image | Can be customized |
| Menu and information | GUI(Can be customized) |
| Image Enhancement | DDE |
| Contrast and Brightness | AGC |
| Online update | Both code and GUI resources |
| reticle type | 5 optional(Can be customized) |
| ballistic and zeroing | 5 types can be created by user |
| Range finder | Software Approximate ranging |
| Display | |
| Type | OLED |
| Resolution | 1024×768 |
| Power Supply | |
| Battery | 2×CR123 |
| External Power Supply | 5V micro USB |
| Battery life | 5h |
| Physical Characteristics | |
| weight without battery | 450g | 500g |
| size,(mm) | 170×61×67 | 180×61×65 |
| Environmental Compatibility | |
| Waterproof | IP67 |
| Operating Temperature | -25℃-50℃ |
| Storage Temperature | -40℃-70℃ |
| shock tolerance | 1200g/ms |
| Wi-fi | |
| Frequency | 2.4GHz |
| Standard | 802,11 b/g/n |
| Line-of-sight reception range, m | 15 |
SALES & SERVICE
We understand that as a manufacturer it is important to work tightly with our distributors to support customers from different regions. We try our best to make sure all customers can get proper training of our device and good after-sell service when any kind of failure occurs.
QUALITY CONTROL
We understand that, in some cases, lives may depend on the performance of our products, that is why every unit that leaves our facility must pass tough quality control standards testing.
It is our mission to continue to design, build, test and ship the very best optoelectronics devices on the market.
